Electronic Permit to Work (ePTW) Software - Architecture & Workflows

Electronic Permit to Work (ePTW) software controls work including risk assessments, isolations & LOTO, SIMOPS checks, approvals, handover, and close-out. A modern ePTW platform has a workflow engine, role-based approvals, mobile/offline capture, auditable records and integrations to CMMS/EAM for assets and work orders. Benefits are faster permit cycle times, fewer conflicts, stronger compliance and audits and lower incident costs. This guide explains the architecture, implementation playbook, KPIs, examples and a build-vs-buy decision matrix for ToolKitX customers in oil & gas, offshore, renewables, utilities, construction and manufacturing.

What Is an ePTW System?

ePTW digitizes the permit-to-work process end-to-end: permit creation, risk assessments, isolation & LOTO planning, gas testing, approvals, SIMOPS control, shift handover and close-out—all under one governance model. Roles are clear (Issuer, Performing Authority, Area/Operations Authority), prerequisites are enforced and records are audit-ready.

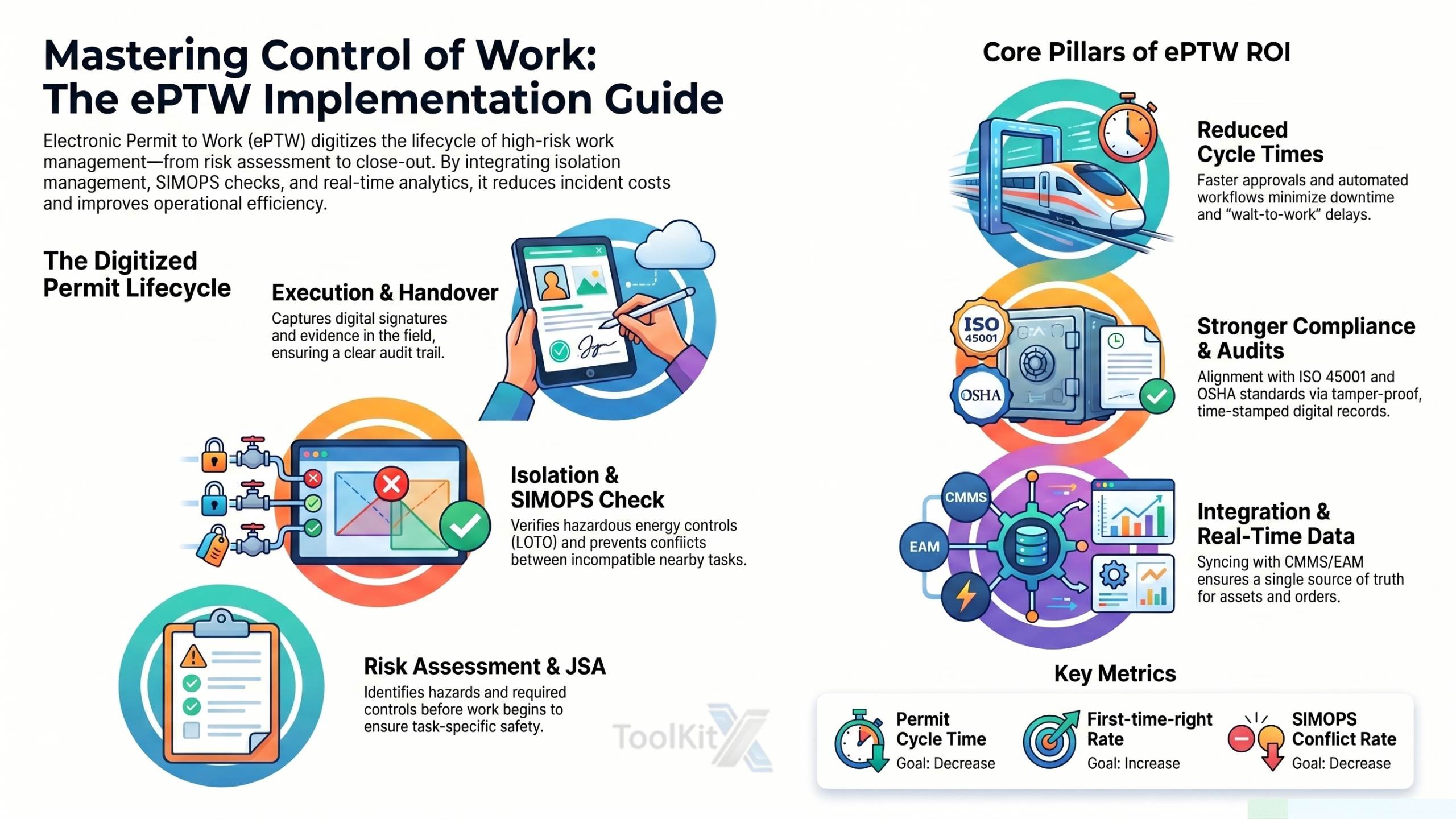

Request → JSA/Risk → Isolation & LOTO → SIMOPS check → Approvals (RBAC) → Work Execution → Handover/Close‑out → Post‑job Review

Why It Matters — ROI & Risk Reduction

Removes conflict and handover failures:

Centralises permits and shift information to prevent incompatible work.

Aligns with recognized standards:

HSG250, ISO 45001, OSHA 1910.147, IOGP Rules, Energy Institute guidance.

Strengthens business case:

Incidents and injuries are costly; ePTW reduces rework, delays and compliance risk.

Improves productivity:

Faster approvals and fewer lost-time events; auditable evidence for audits and regulators.

ePTW Architecture — Components That Matter

Workflow Engine & Templates

What: Configurable workflows for permit types (hot work, confined space, line breaking, electrical, working at height).

Why: Enforces prerequisites (JSA, gas tests, isolations) and standardises language.

Implementation Tip: Start with standard templates; localise only where risk demands.

Pitfall: Over-customisation that fragments terminology.

JSA / Task Risk Assessment

What: Job steps, hazards, controls/PPE, residual risk.

Why: Controls explicit before work starts; toolbox talks.

Tip: Human factors (fatigue, simultaneous tasks).

Pitfall: Tick box JSAs not linked to task briefings.

Isolation & LOTO Management

What: Isolation points, lock/tag IDs, verification, re-energization plans.

Why: Hazardous energy control (LOTO) during maintenance.

Tip: Isolation register synced with asset hierarchy/P&IDs.

Pitfall: Free text isolation steps without verification gates.

Roles, Approvals & SIMOPS Control

What: RBAC, area/operations authority, SIMOPS coordinator workflows.

Why: Prevents incompatible work; clarifies accountability.

Pitfall: Approver overload; use area based routing and delegation

Integrations (CMMS/EAM & Document Control)

What: Sync assets, work orders, documents (P&IDs, SOPs).

Why: Single source of truth; fewer data re-entries and errors.

Pitfall: Unidirectional syncs that create stale data; plan near real time updates

Mobile/Offline & Evidence

What: Field capture of signatures, photos, gas readings; offline cache.

Why: Continuity in low connectivity sites.

Pitfall: No offline conflict checks; cache the latest permit map.

Analytics & Audit Trail

What: Time stamped events, dashboards, exportable audit logs.

Why: Trend analysis, compliance evidence, management reviews.

Pitfall: Measuring outputs (permits issued) without outcomes (conflicts prevented).

Implementation Playbook — From Pilot to Scale

Baseline & Scope: Map today’s PTW; analyze 100 recent permits for defects and cycle time.
Standards Alignment: HSG250, ISO 45001, OSHA 1910.147, IOGP in templates & workflows.
Isolation Register: Digitize and verify isolation points against P&IDs and field walkdowns.
Data Model & Integrations: CMMS/EAM (assets, WOs), DMS (procedures), people/roles (SSO).
Pilot Site: High-risk area; short parallel period; measure cycle time, rework, SIMOPS conflicts.
Training & Drills: Toolbox talks, SIMOPS scenarios, gas testing refreshers; approver certification.
Go‑Live & Governance: Change board, deviation handling, quarterly audits; “Last updated” on procedures.
Scale & Improve: Roll to remaining sites; add analytics & management review cadence.

Inputs: permit types, roles, isolation list, JSA matrices, gas test rules.

Outputs: approved permits, auditable evidence, KPI dashboards.

Roles: Issuer, Performing Authority, Area/Operations Authority, Gas Tester, Isolation Authority, SIMOPS Coordinator.

Examples, Templates & KPIs

Mini‑Case 1 (Offshore, anonymized):

Replaced paper PTW with ePTW linked to CMMS and reduced shift‑change delays and permit rejections due to missing gas tests or isolation references. Audit readiness improved and SIMOPS conflicts decreased.

Mini‑Case 2 (Manufacturing, anonymized):

ePTW integrated with digital isolation register. Supervisors verify energy controls before issue; evidence supports LOTO compliance and cut rework on repeat jobs.

KPIs to Track

KPI	Definition	Formula
Permit cycle time	Request → final approval	approval_ts – request_ts
First‑time‑right rate	Permits approved without rework	approved_no_rework / total_approved
SIMOPS conflict rate	Conflicts auto‑flagged per 100 permits	conflicts / permits * 100
Isolation verification compliance	Permits with verified LOTO steps	permits_with_LOTO_verify / permits
Audit findings rate	Findings per 100 permits	findings / permits * 100

Build vs Buy — Honest Comparison

Option	Pros	Cons	Best For
Buy ePTW	Fast time‑to‑value; standards‑aligned templates; vendor support	Subscription cost; process fit‑gap	Teams seeking quick, compliant rollout
Build in‑house	Full control; bespoke flows & data model	Long lead time; QA/validation burden; maintenance	Unique workflows + strong internal dev/QA
Hybrid	Product core + custom micro‑services	Integration complexity; dual governance	Mature orgs needing niche analytics or add‑ons

Decision criteria: standards coverage, isolation model depth, mobile/offline robustness, integration effort, analytics, configurability vs. customization, vendor roadmap, and 3–5‑year TCO.

Common Mistakes & How to Fix Them

Treating ePTW as “forms online.” Fix: design end‑to‑end control‑of‑work with SIMOPS gates.

Weak LOTO linkage. Fix: verified isolation register; enforce checks before issue.

Unclear roles/approvals. Fix: HSG250‑style role definitions and RBAC.

Stale procedures. Fix: ISO 45001 management review cadence; show “last updated.”

No pilot metrics. Fix: baseline and compare post‑go‑live.

Over‑customization. Fix: start with standard templates; extend after stabilization.

Conclusion & Next Step

A mature ePTW program raises safety and productivity together—shorter cycle times, fewer conflicts, and cleaner audits. Ready to benchmark your process? Book a ToolKitX ePTW demo
